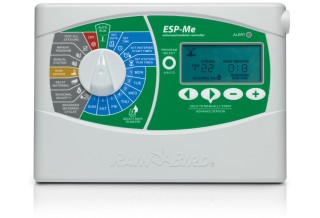

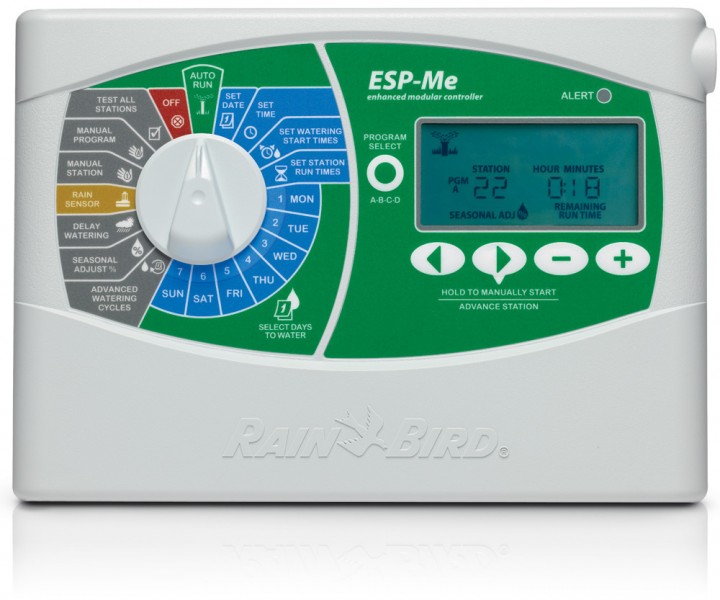

Controllers RAIN BIRD - ESP-ME
APPLICATIONS:
Rain Bird ® ESP-ME controllers can easily be expanded from 4 to 22 stations to meet your needs. They have four independent programs , and a host of features for maximum flexibility .
FEATURES:
• Large LCD display for easy programming and use characteristics.
• Base model with 4 stations , capacity expansion to three modules of 3 or 6 stations
• No loss is memory support program during the absence of power supply
• Water budgeting function adjusts watering times from 5 to 200 % in increments of 10%
• Separate terminal for rain sensor allows easy connectivity and maximize the efficiency of water use
• Turn off the operation of the rain sensor for each station separately
• Advanced diagnostics and short detection with LED alert
• Contractor Default™ Program Save/Restore saved program(s)
• Programmable master valve / relay to start the pump, allows the user to set the start of the pump with a specific station if necessary
• Programmable delay between stations given extra time to recover the source or close the valve slowly to avoid water hammer
• Lockable box for models for outdoor (outdoor )
• Extremely durable and spacious with a separate inner wall for cable connections to high voltage ensures safe and professional installation
SPECIFICATIONS
Operating voltage - 24V
Stations - basic model with 4 stations , capacity expansion to three modules of 3 or 6 stations - maximum expansion to 22 stations
Programs - 4
Start times per day / per program / - 6
